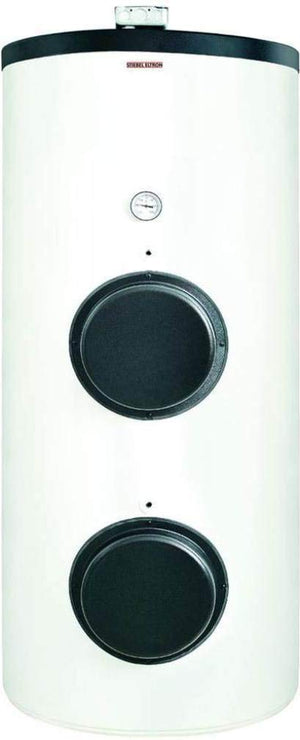

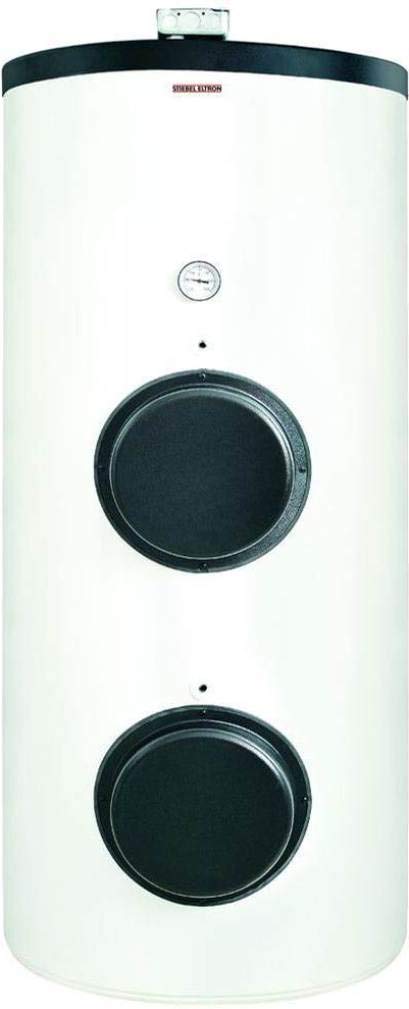

Stiebel Eltron 234111 Model SB 400 E Domestic Single Heat Exchanger Hot Water Tank with Electric Element for Solar, Geothermal or Hydronic Applications; 105.6 Gallon Storage Capacity

Stiebel Eltron  |  SKU: 234111  |  Barcode: 040232177132
$2,49900 USD
Shipping calculated at checkout.

Delivery and Shipping

Stiebel Eltron Products can be shipped via standard methods using carriers such as UPS, FedEx, and USPS. Very large, heavy, or bulky items (like bathtubs and appliances) as well as large-quantity orders, may require oversized freight delivery, which can add an additonal shipping charge. Please contact us if you have any questions at 844-438-7674

Return Policy

You may return most item(s) in their original unopened package within 30 days from the date of receipt. (Please note some items may be sepical order non-returnable). If your item(s) get approved for return, you will be credited the full amount minus any shipping charges and restocking fees.

Please contact us if you have any questions

Read more at the Return Policy Page

Stiebel Eltron 234111 Model SB 400 E Domestic Single Heat Exchanger Hot Water Tank with Electric Element for Solar, Geothermal or Hydronic Applications; 105.6 Gallon Capacity

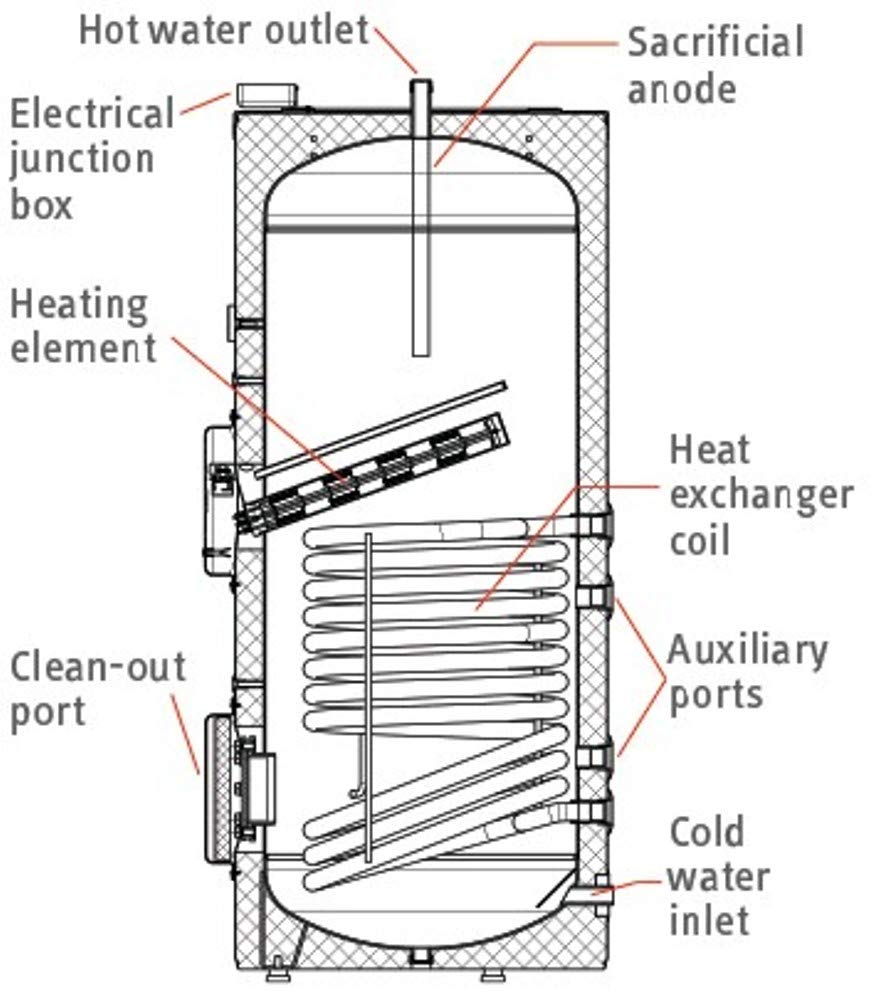

All Stiebel Eltron SBB/SB-E series tanks are made in our factories in Germany and Slovakia. They can be used in residential or commercial installations as indirectly-fired domestic hot water storage tanks in conjunction with any type of boiler, geothermal, or solar hot water application. The vessels and heat exchangers in SBB/SB-E tanks are made from heavy gauge steel. All surfaces in contact with domestic hot water receive a thick porcelain enamel coating after shot-peening to clean the steel surface. All SBB/SB-E tanks come with heavy-duty sacrificial anodes and visible anode wear indicators.

Key Features
  • Heavy gauge steel with porcelain enamel coating
  • Superb quality results in long service life
  • Fitted with one or two large heat exchangers
  • Sacrificial anode rod
  • Up to 3" R-21 urethane foam insulation for low standby heat loss
  • Large clean out port for ease of maintenance
Specifications
  • Storage capacity: 105.6 gal
  • Heat exchanger volume: 2.9 gal
  • Surface area of heat exchanger: 20.6ft2
  • Working pressure: 145 PSI/10 bar
  • Heating element voltage: 220-240V
  • Heating capacity: 10,239 BTU/hr/3.0kW
  • Frequency: 60Hz
  • Rated current: 12.5A
  • Required circuit breaker: 20A
  • Heating element type: Dome element
  • Heating element material: Ceramic
  • Set range of thermostat: 86°F-167°F
  • Cold/hot water connection: 1" male NPT
  • Heat exchanger & auxiliary connections: 1" female NPT
  • Standby losses in 24 hours: 3 kW/10236 BTU
  • Height: 60-13/16"
  • Diameter 29-1/2"
  • Insulation thickness 2"
  • Diameter without insulation 25-9/16"
